Artikel-Beschreibung

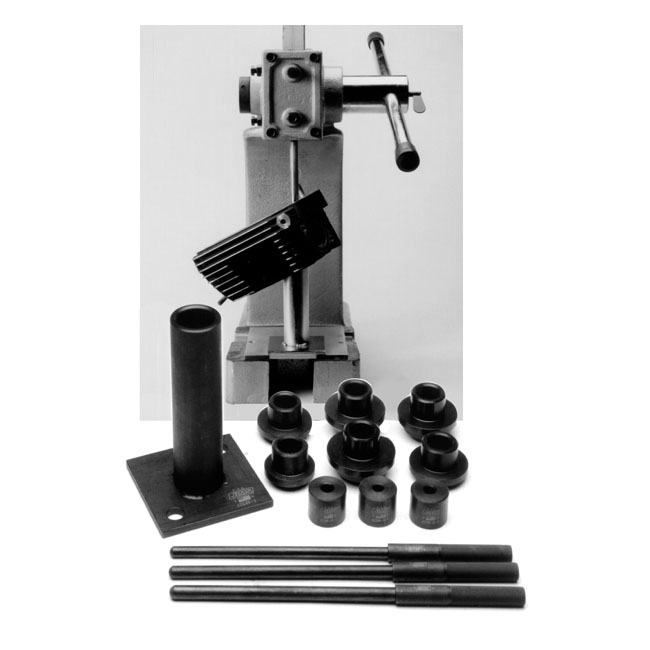

JIMS, Head Holder/Guide install & remove tool
Used to hold the cylinder head (OEM & all aftermarket heads). a special valve guide alignment shaft is designed into this tool and will hold the correct angle for best possible guide installations; in line with the valve seats; for less valve seat grinding afterwards. adapters are supported by a support stand; making the pressing in & out of valve guides easy. includes: 1 base assembly 2240-I 1 adapter; int; 1986-03 883 XL Sportster; all Twin Cam exh 2240-2 1 adapter; int; Big Twin; EVO; 1986 XL1100 exh. Shovelhead and 1986-03 883 EVO XL Sportster 2240-3 1 adapter; int; Shovelhead / exh big twin; EVO; 1986 1100; XL Sportster; most all Twin Cam 2240-4 1 adapter; int / exh; Ironhead XL Sportster 2240-5 1 adapter; int; 1987-1100 / 1988-03 1200 XL Sportster; EVO 2240-6 1 adapter; exh; 1987-1100 / 1988-03 1200 XL Sportster; EVO 2240-7 1 pilot .306 diameter 2240-16 1 pilot .371 diameter 2240-17 1 pilot .338 diameter 2240-18 1 pilot 7mm diameter 2240-19 1 insert; .310 diameter 2240-11-1 1 insert; .375 diameter 2240-11-2 1 insert; .342 diameter 2240-11-3 1 insert; 7mm diameter 2240-11-4 1 instructions 2240-is
