Part Description

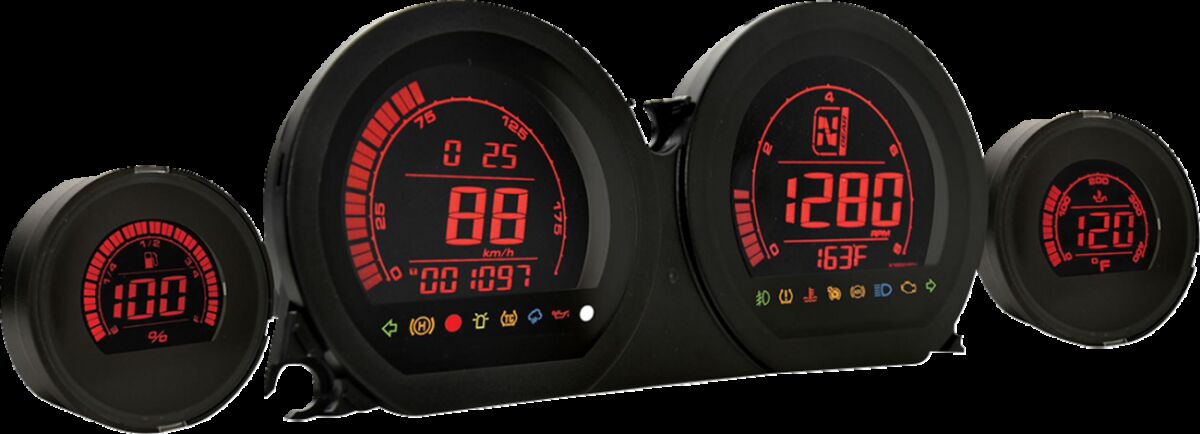

HD-03 - Four-Piece LCD Gauge Kit- Plug-and-play.

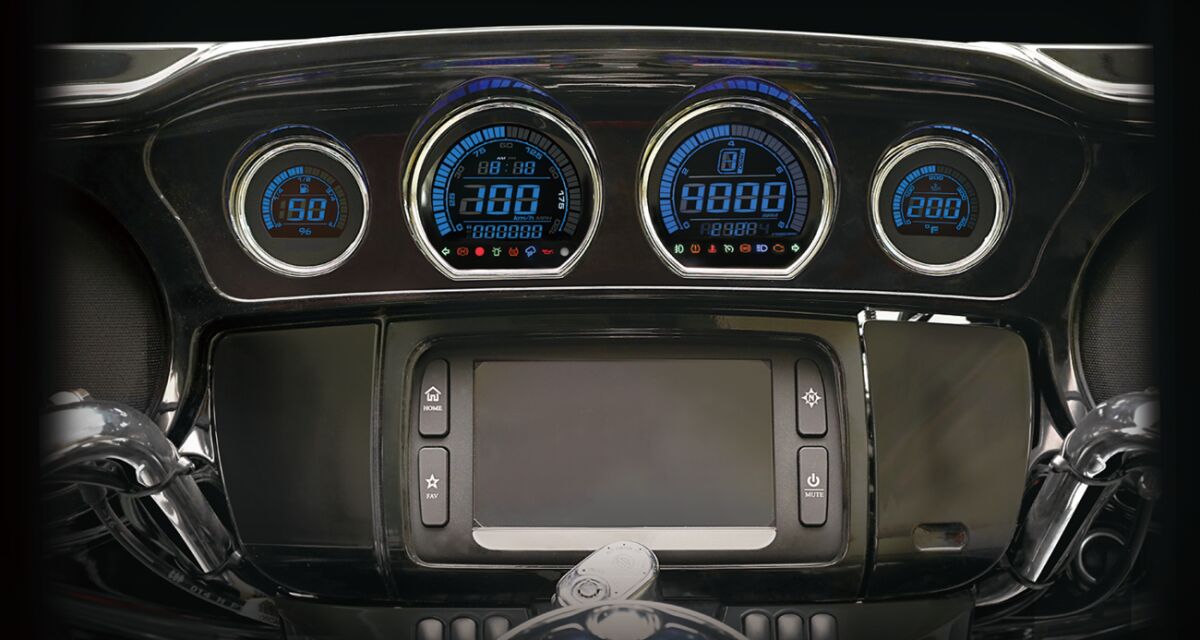

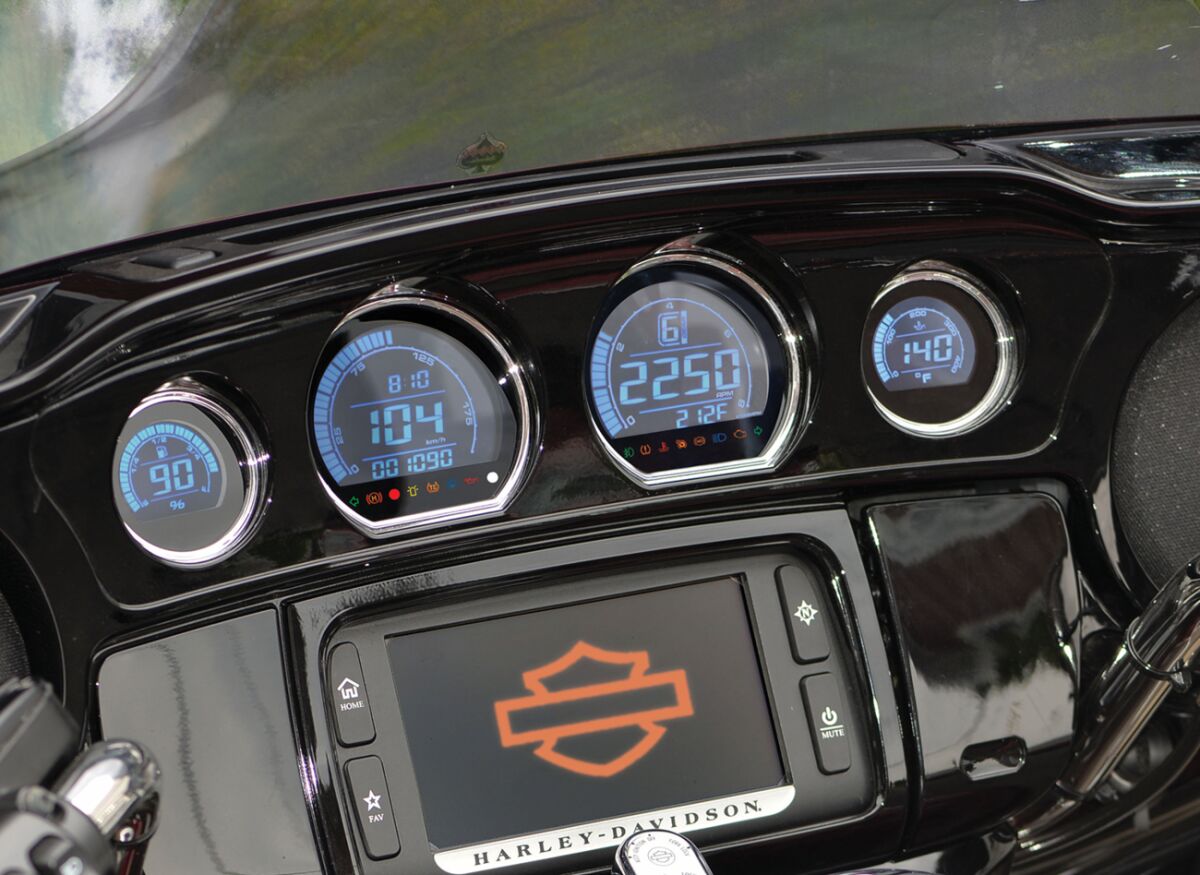

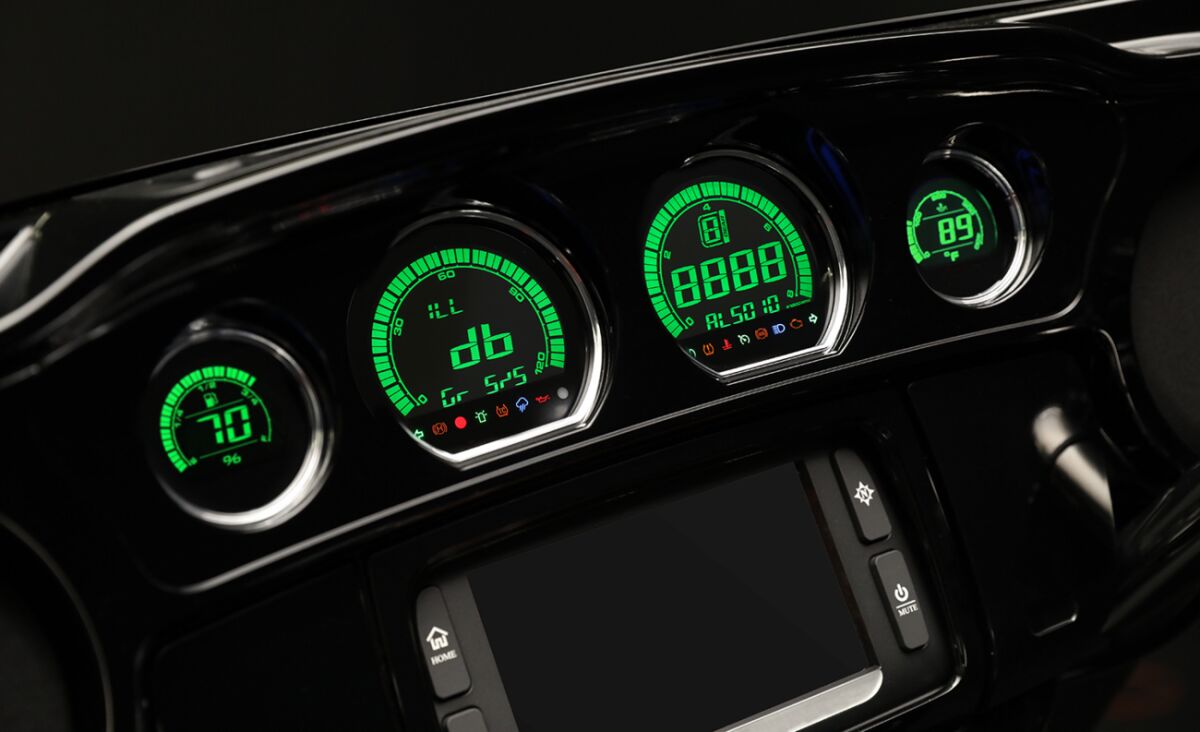

- Fits directly on OEM dash and connectors.

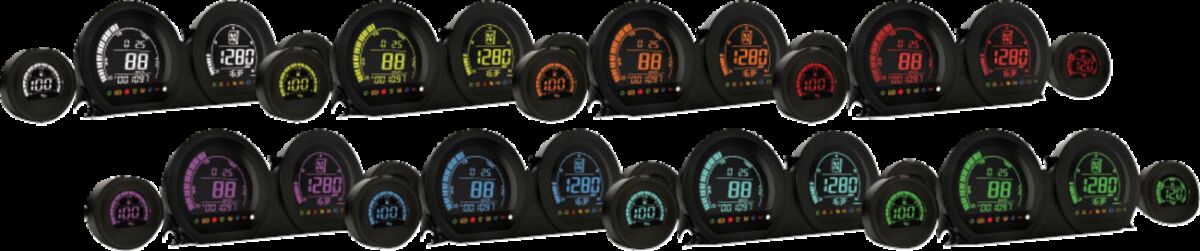

- Color changeable LCD display.
- Includes multifunction speedometer, tachometer, odometer, gear indicator, tripmeter, engine temperature, oil temperature, and fuel level gauges.
- Indicator lights for oil, engine warning, warning light, high beam, fog light, and turn signals.
- Optional air pressure sensor for models equipped with air suspension is available separately.
- Specifications: .
- Tachometer (0 - 9,999), RPM Shift Light (2,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM).
- Speedometer (0 - 199 MPH), Maximum Speed Record (0 - 199 MPH), Overspeed Warning (19 - 199 MPH).
- Odometer (0 - 999,999 miles), Tripmeter A/B (0 - 9,999 miles), Mileage Maintenance (300 - 10,000 miles).
- Engine Temperature (Standard/Customize), Oil Temperature Meter (32° F - 248° F), Maximum Oil Temperature Record (32° F - 248° F), Effective Temperature Range (14° F - 140° F).
- Fuel Meter (6 levels 1 level = 16.6%), Fuel Tank Volume (Off/1 - 9.9 US Gallons), Average Fuel Consumption (Off/MPG), Remaining Mileage (0 - 6,249 miles).
- Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)Optional air pressure sensor kit sold separately (part # 2212-0901).
