234869 - Mikuni Rubber Mount Flange for HS40 Carb

NOTE: The images shown are for reference only, the actual product may differ.
Therefore please always read the description or read on the corresponding catalog page.

Enlarge article image    Enlarge article image

Mikuni Rubber Mount Flange for HS40 Carb

Article-No.: 234869
36,42 €

Part Description

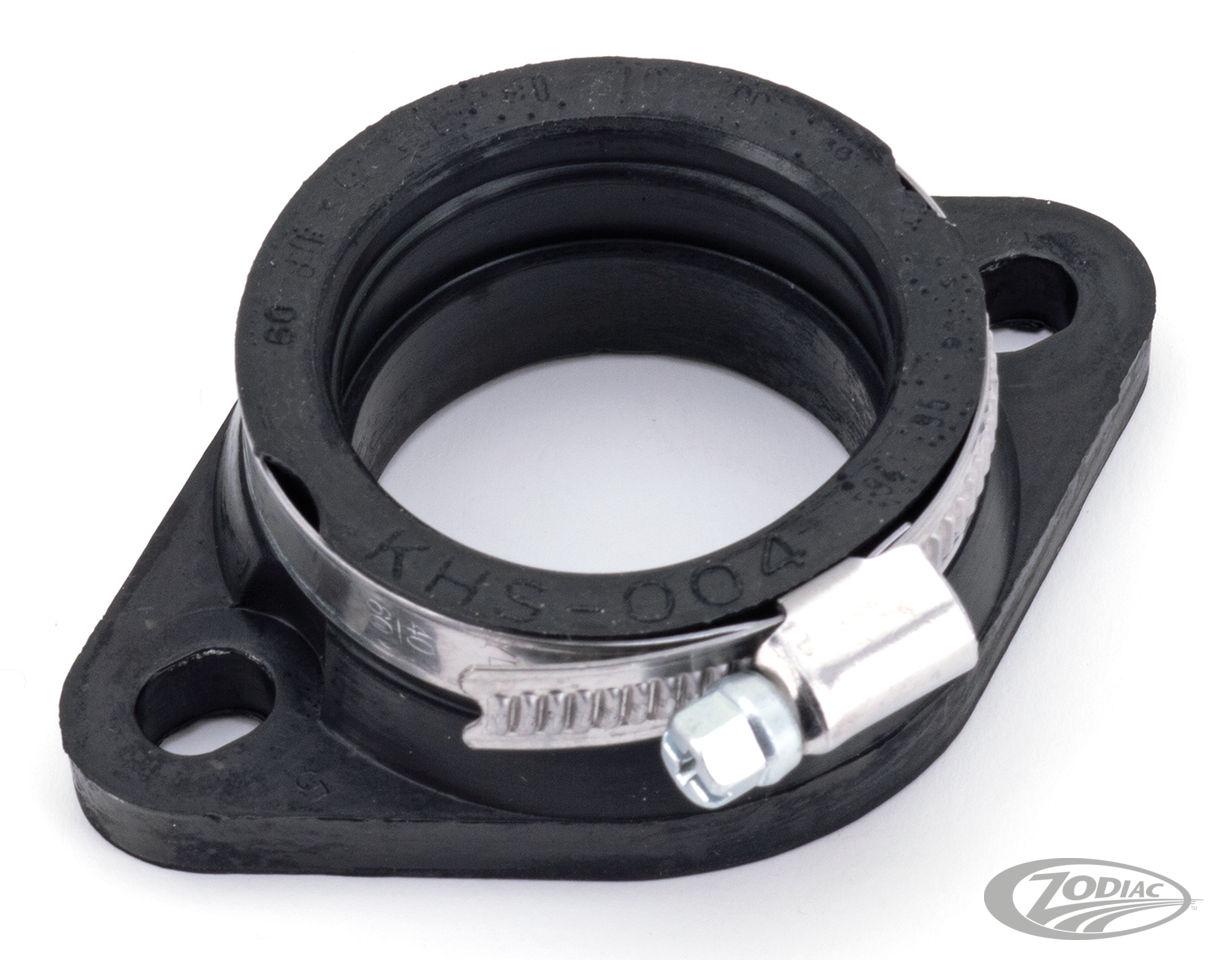

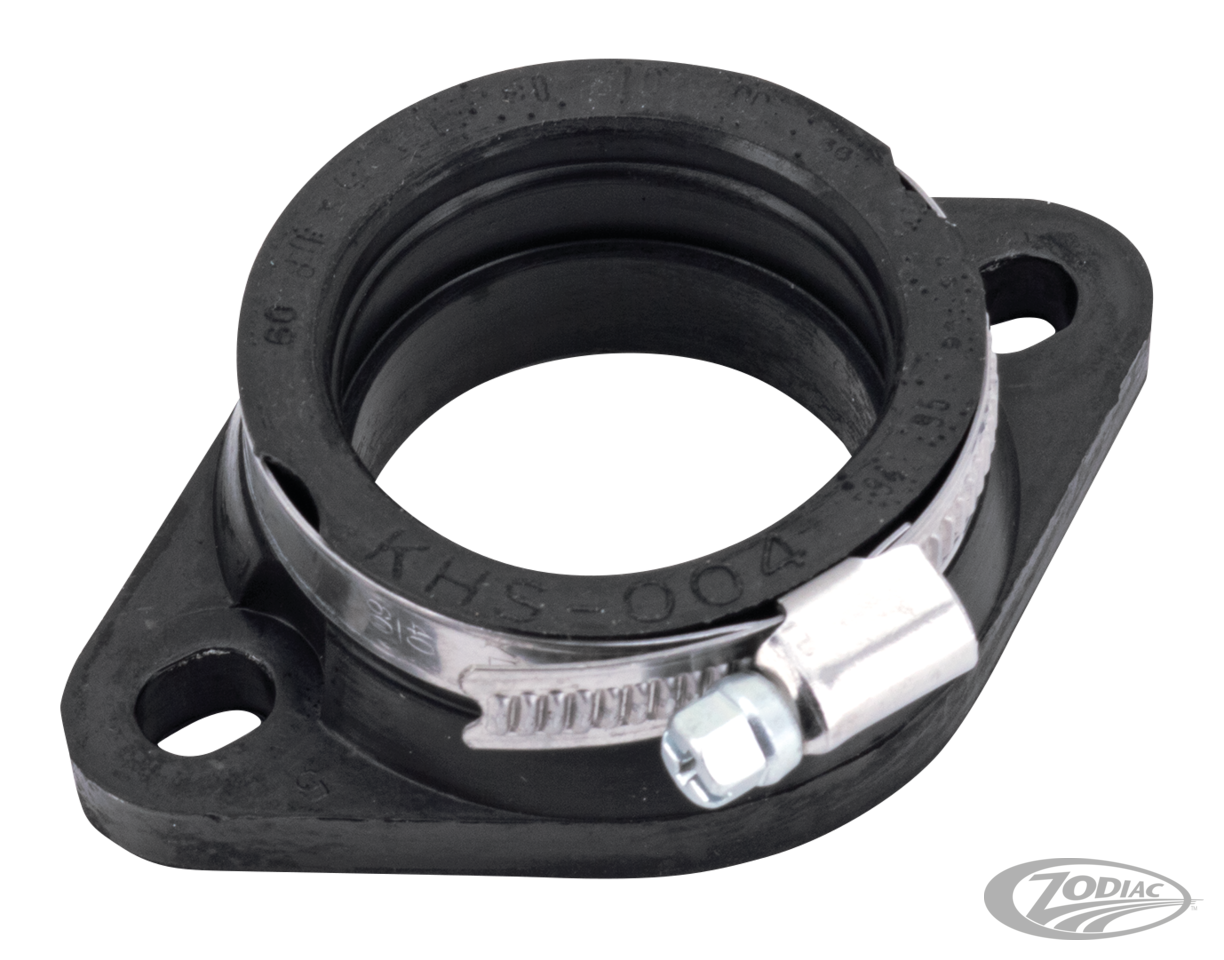

Rubber carburetor-to-manifold mounting flange, fits 36mm and 40mm Mikuni and other carburetors with a 43mm spigot diameter, comes with carburetor mounting clamp

Text excerpt from the catalog:

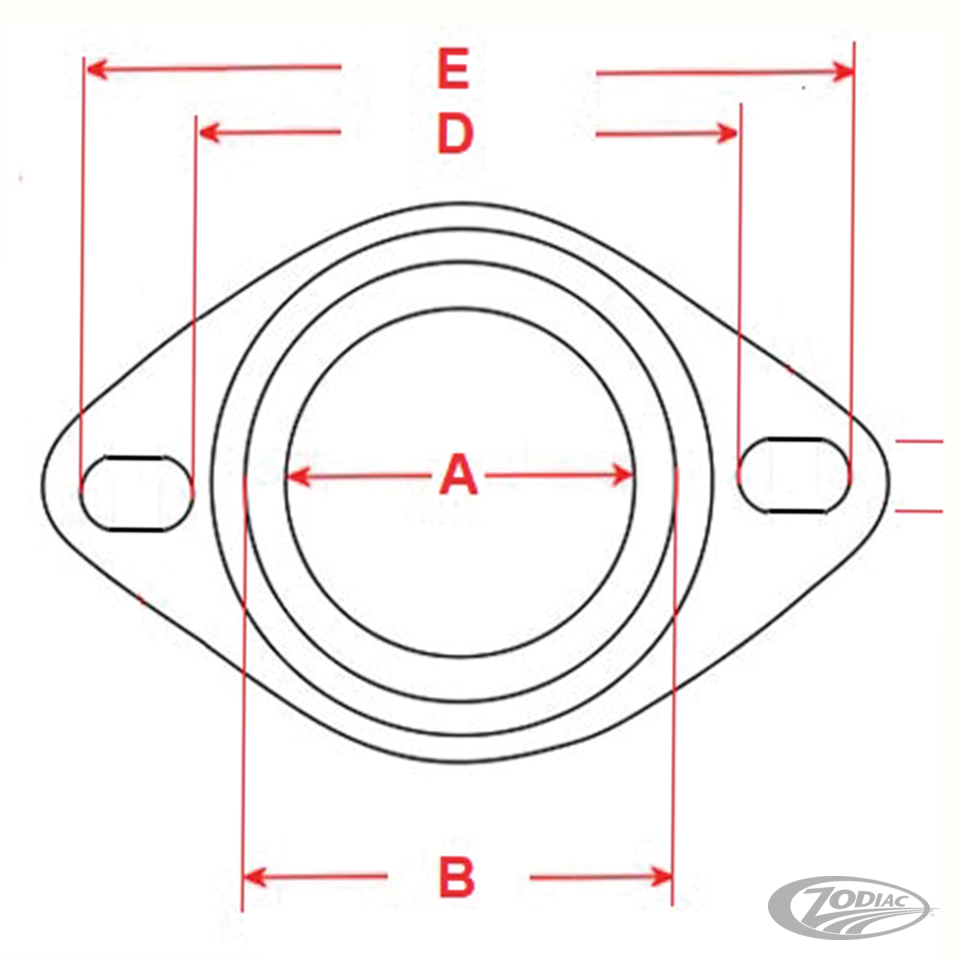

These rubber mounting flanges are initially made for Mikuni carburetors but can also be used for custom applications. Flanges have slotted mounting holes with a 2.859" (72.6mm) center to center distance.

Spezification

Article-No.:
234869
Manufacturer/Distribution:
MIKUNI / Zodiac International
Packaging Unit:
1
Catalog page:
321
