Part Description

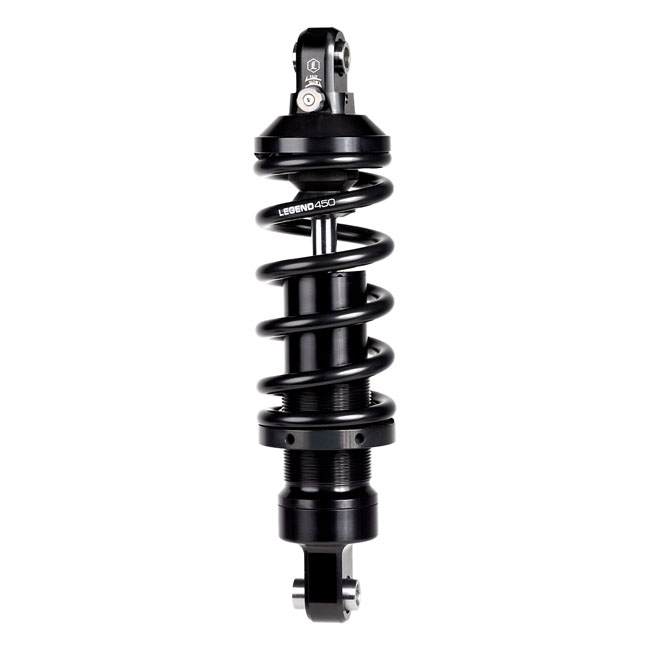

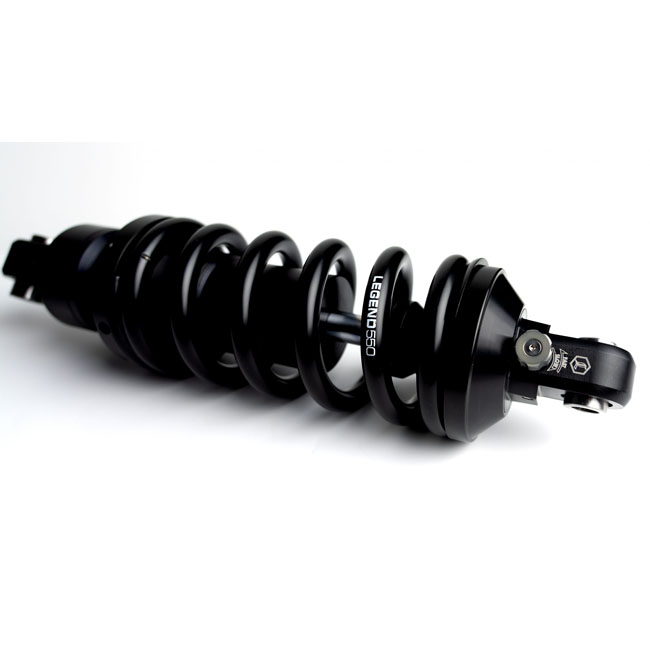

Legend, Revo-A shock set. Heavy Duty. 13" Black
Black Type III hard coat anodized finish.Adjustable preload for rider setup also allows for minimal pre-load adjustment when changing between rider’s weights and loads. Features adjustable rebound damping that is specifically designed to make fast; precise; and repeatable changes to ride comfort and performance with a simple turn of a knob. Low friction sleeve bearings both top and bottom for ease of installation; this also allows the shock to float in its mount and avoid shock bind. Hard anodized; 46mm billet aluminum monotube design with a lightweight high-flow piston design for improved fluid flow resulting in unmatched handling and bike control. Hard chromed shaft is 14% larger for increased strength. Internal floating nitrogen piston ensures consistent damping performance. Deflective disc valving self-adjusts to frequency and ensures controlled performance. Legend’s durable and low-friction sealing system and sliding bearings provide improved performance and feel. OEM mounting hardware can be reused. OEM replacement reference 54000138A. Note: Standard Duty shock is advised for up to 350lbs. (159kg) total loaded weight. A Heavy Duty shock is advised for over 350lbs (159kg) rider/passenger/gear total weight. Note:: 13" is the standard length for 18-21 FLHC; 18-24 FLHCS; 22-24 FXLRS; 22-24 FXLRST; 2022 FXRST.
