Part Description

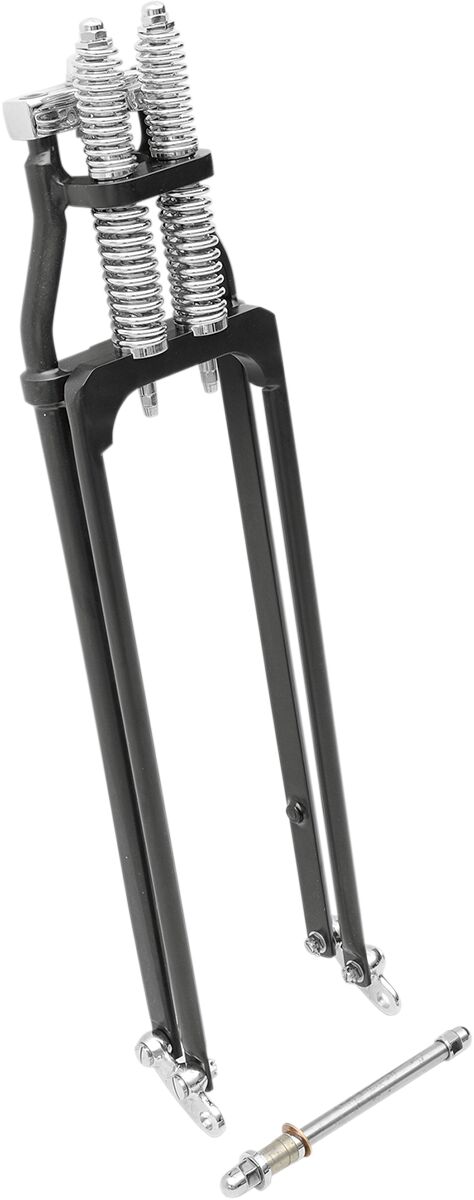

Custom Springer Forks- Economical alternative to a shock dampened-type Springer.
- Fully assembled with an in-line top bracket without a built-in rake.
- The standard length Springer (31 measured from top bearing to the axle) is comparable to a standard-length FXST front end.
- 1" O.D. steering stem designed for Timken® type bearings.
- Both rear legs are threaded for right or left brakes.
- The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used).
- Measures 9-1/4" between Rockers.
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20.
- Requires wheel compatible with 3/4" O.D. axle.
- These Springers are measured from the bottom of the top tree to the center of the axle.
- Springers do not accept spotlight bars; no fender mounts.The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end."
