Part Description

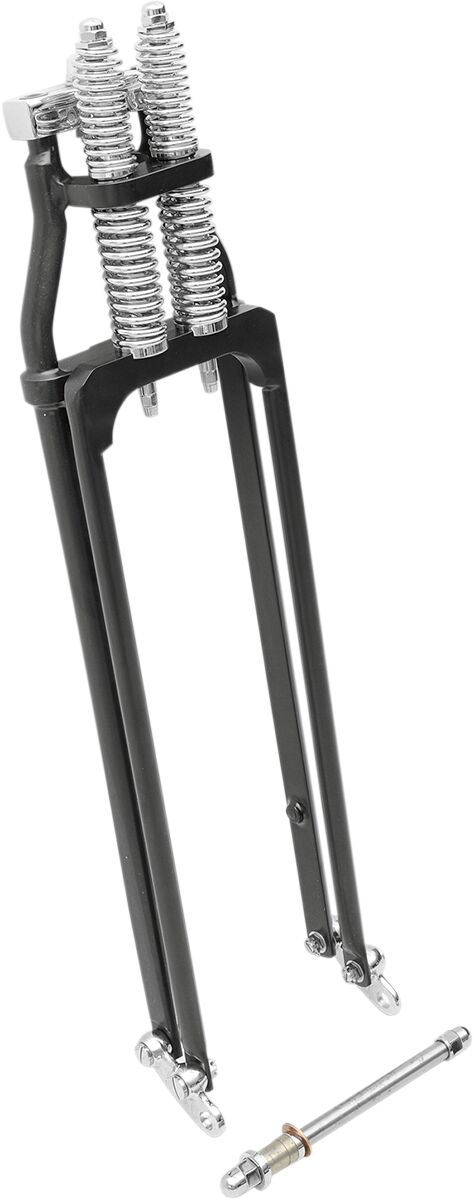

+6 Custom Springer Forks- Economical alternative to a shock dampened-type springer.
- Fully assembled with an in-line top bracket without a built-in rake.
- These +6" length Springers measure 37" from top bearing to the axle .
- 1" OD steering stem designed for Timken® type bearings.
- Both rear legs are threaded for right or left brakes.
- 3/4" OD axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used).
- Measures 9-1/4" between Rockers.
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20.
- Requires wheel compatible with 3/4" OD axle..
- Springers are measured from the bottom of the top tree to the center of the axle..
- Does not accept spotlight bars; no fender mounts."
