Part Description

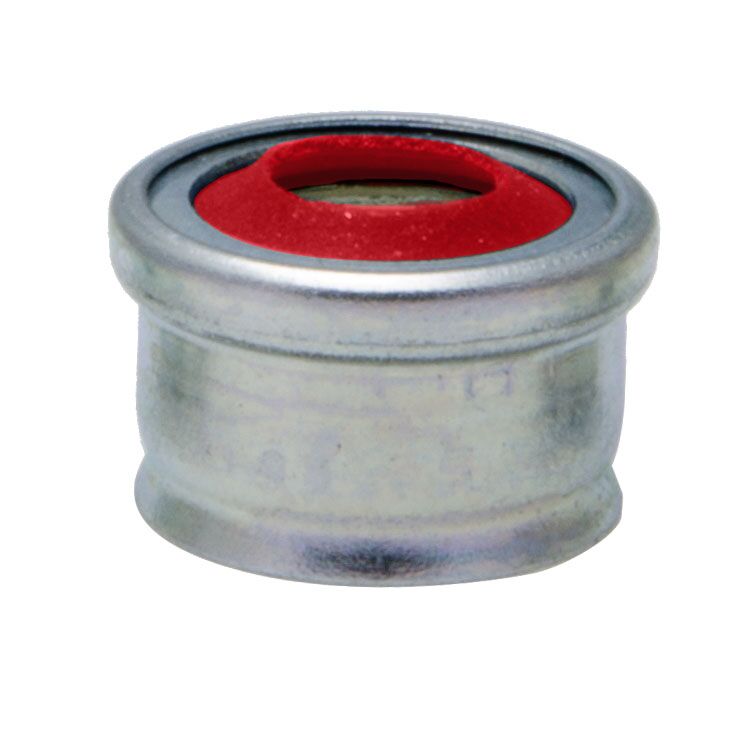

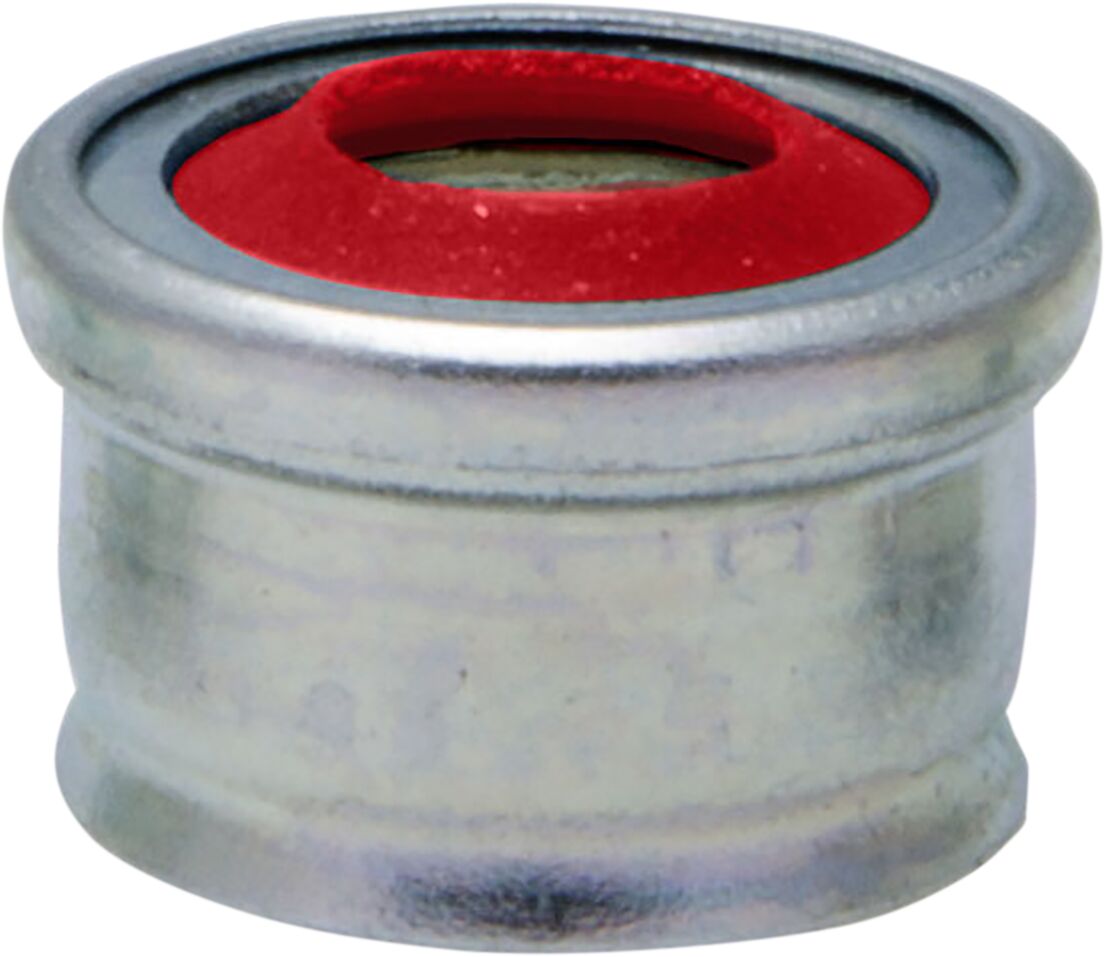

Seal Valve- Kibblewhite valve seals are high-quality products manufactured for long-term reliability.
- These OE style intake seals incorporate a special low friction graphite impregnated PTFE sealing element.
- PTFE material does not have memory and there fore is subject to creep.
- Creep allows the seal to conform to mating surfaces, controlling oil, but not letting the parts run dry.
- PTFE is known to retain its mechanical properties at temperatures as high as 500° F.
- These steel clad seals have a low profile for seal-to-retainer clearance, and will fit inside dual spring assemblies.
- Stem Diameter: 3/8.
- Overall Length: 0.400".
- Seal O.D.: 0.720".
- Guide Diameter: 0.625""
