Part Description

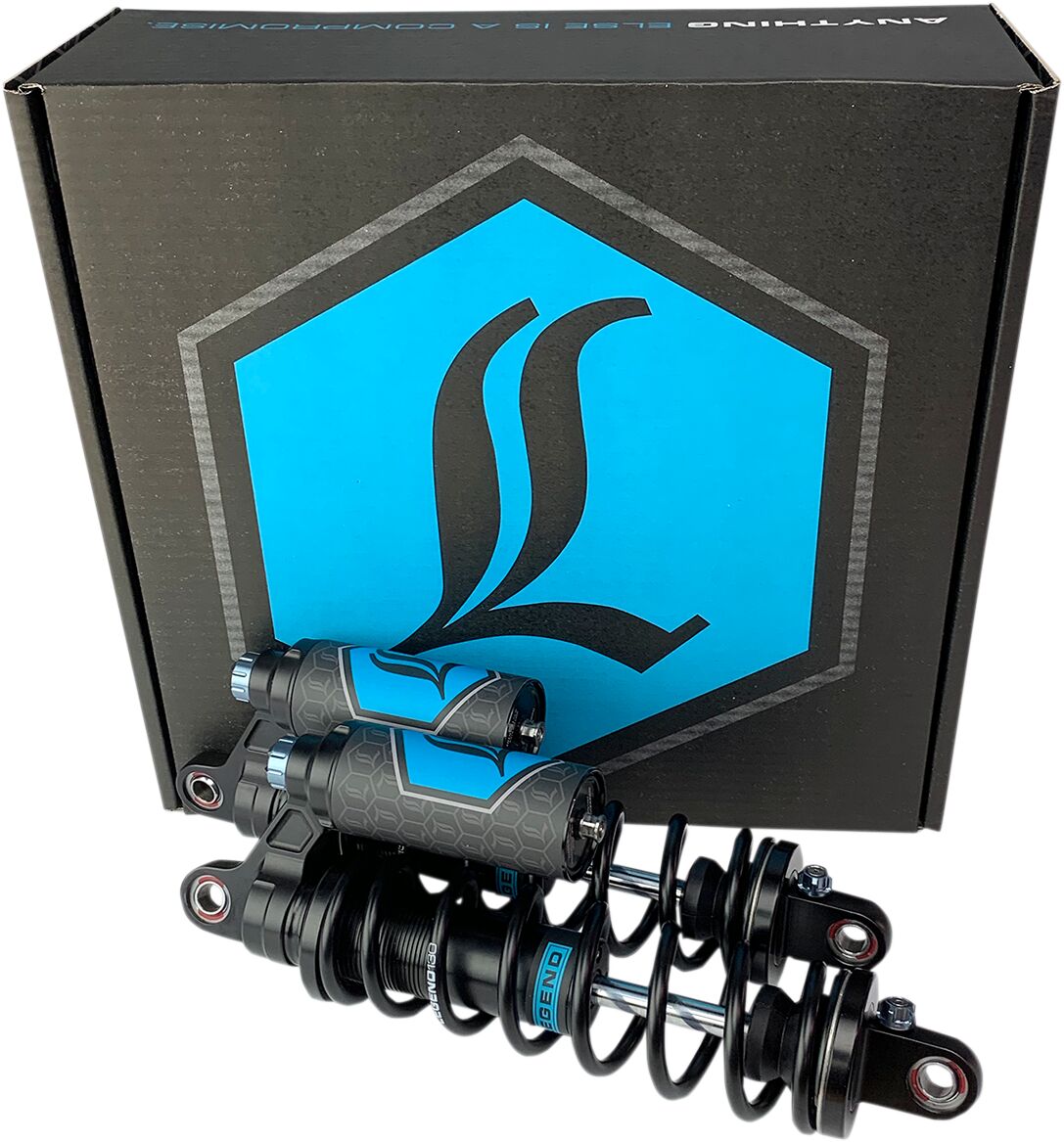

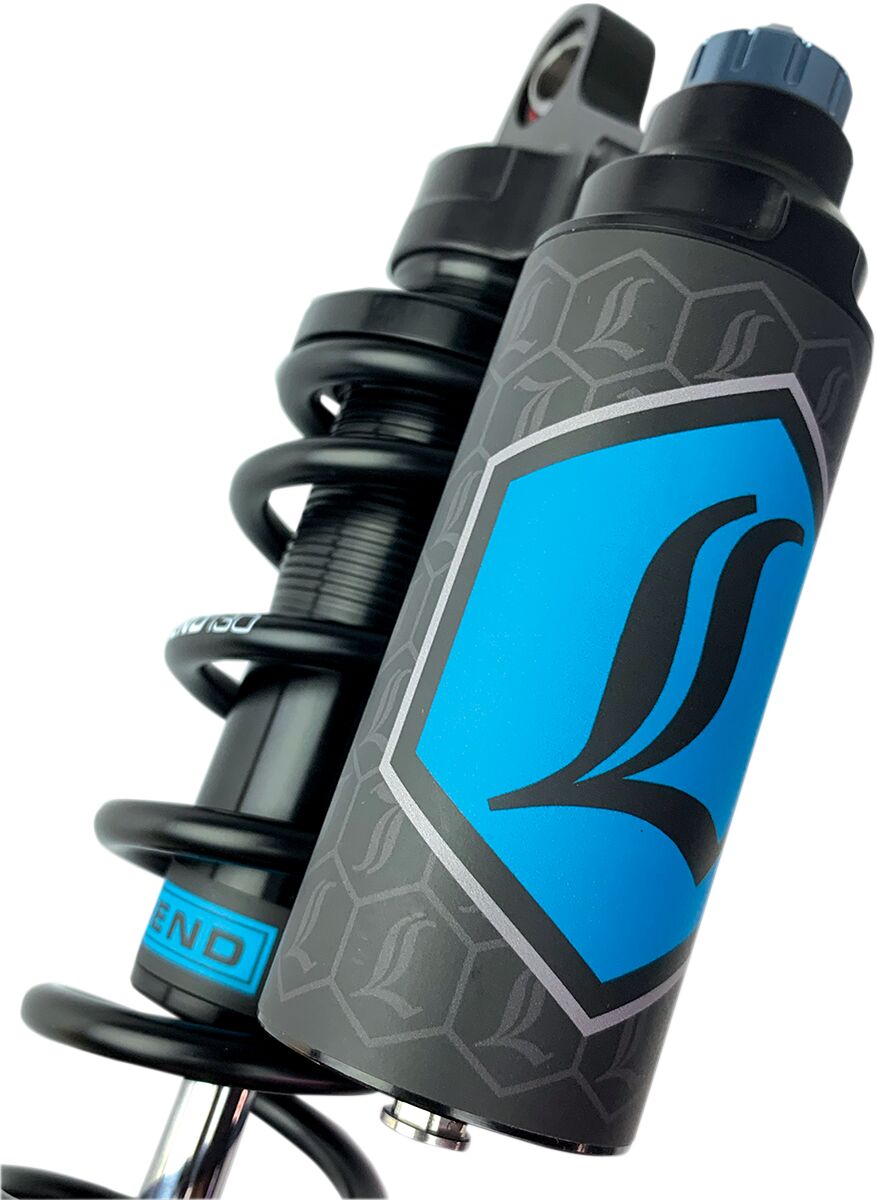

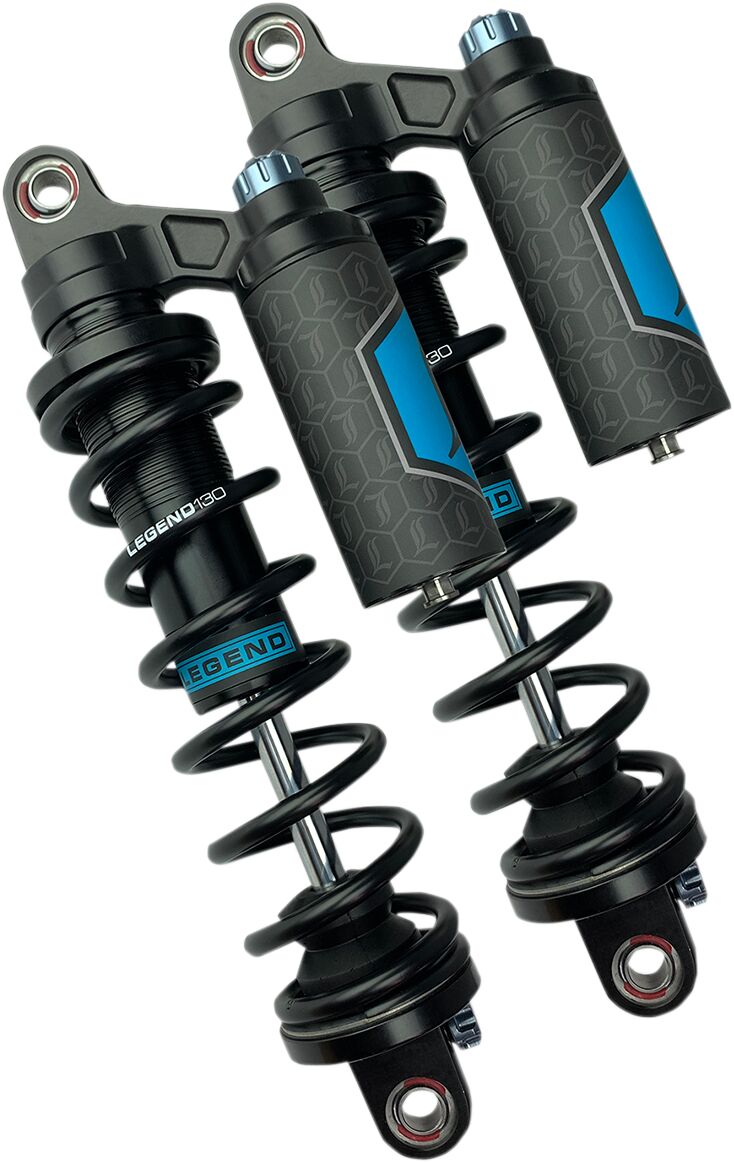

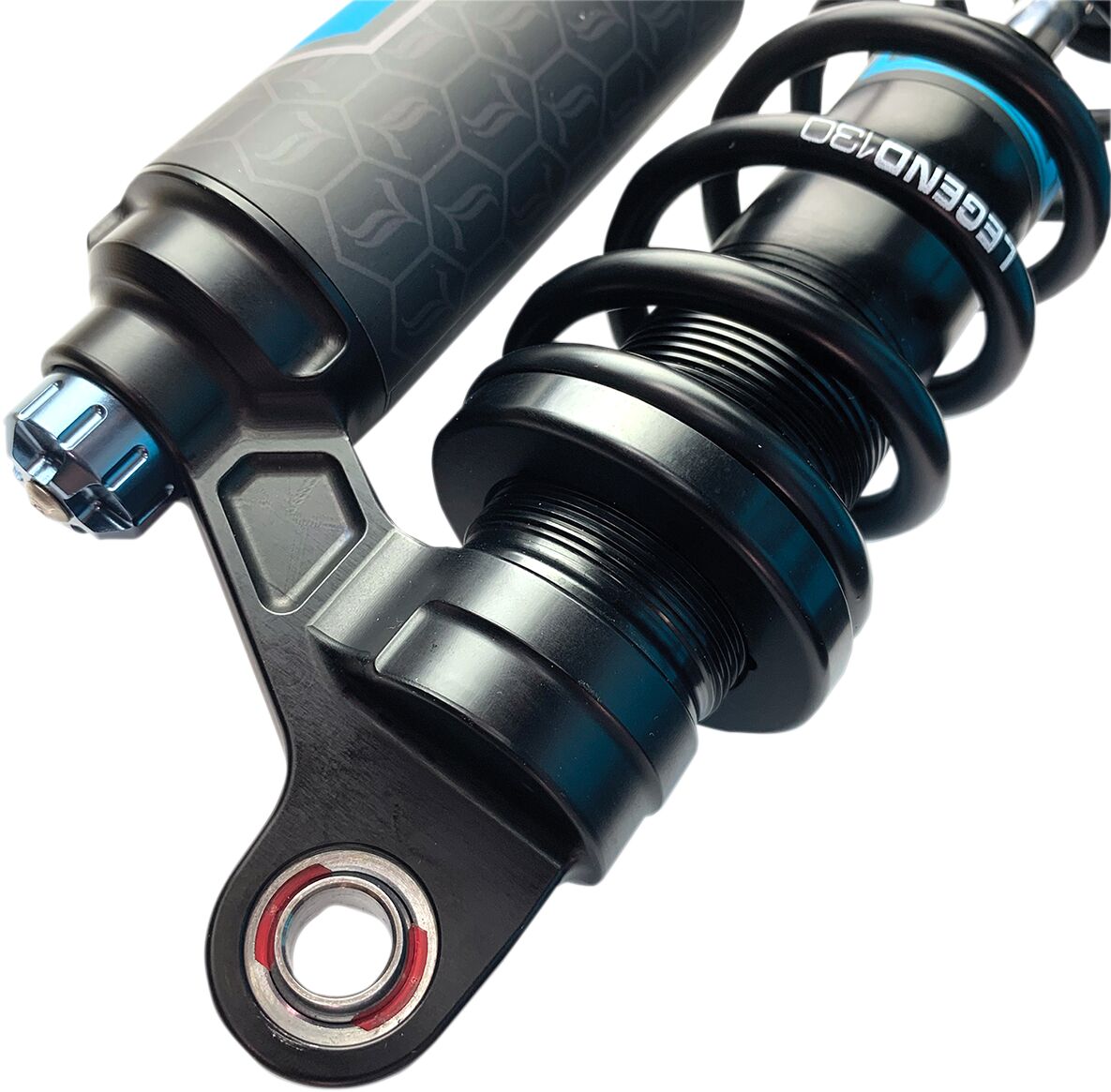

Legend REVO ARC Piggyback Coil Suspension for FXD Models- Available in Black, Gold and Clear Type III hard coat anodize.
- Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort .
- Adjusts by hand, no tools needed.
- Available in 13 and 14", standard or heavy-duty applications.
- Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points.
- 35 mm monotube construction.
- Deflective disc valve stacks.
- Balanced/Matched piston and base-valve design specific for motorcycle applications.
- Low friction sealing system and sliding bearings for improved performance and feel.
- Features independent compression and rebound damping adjusters that are specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob.
- Provides optimum rebound and compression performance for any given rider weight, personal ride preference, or personal riding style.
- Nitrogen gas bladder design allows ultra-fast response and stiction-free movement.
- Light to heavy riders can fine-tune ride preference.
- Aggressive to casual riding styles can tune to desired quality or personal preference.
- Made by hand in Sturgis, SD USA• Heavy Duty application is recommended for 250 lb+ rider and passenger total weight. Also consider Heavy Duty if the majority of your riding is 2-UP, stunt riding, or aggressive riding style.• '99-'05 Dyna models require a hardware kit sold separately--contact Legend Suspensions for more information.• 14" shocks require short exhaust."
