Part Description

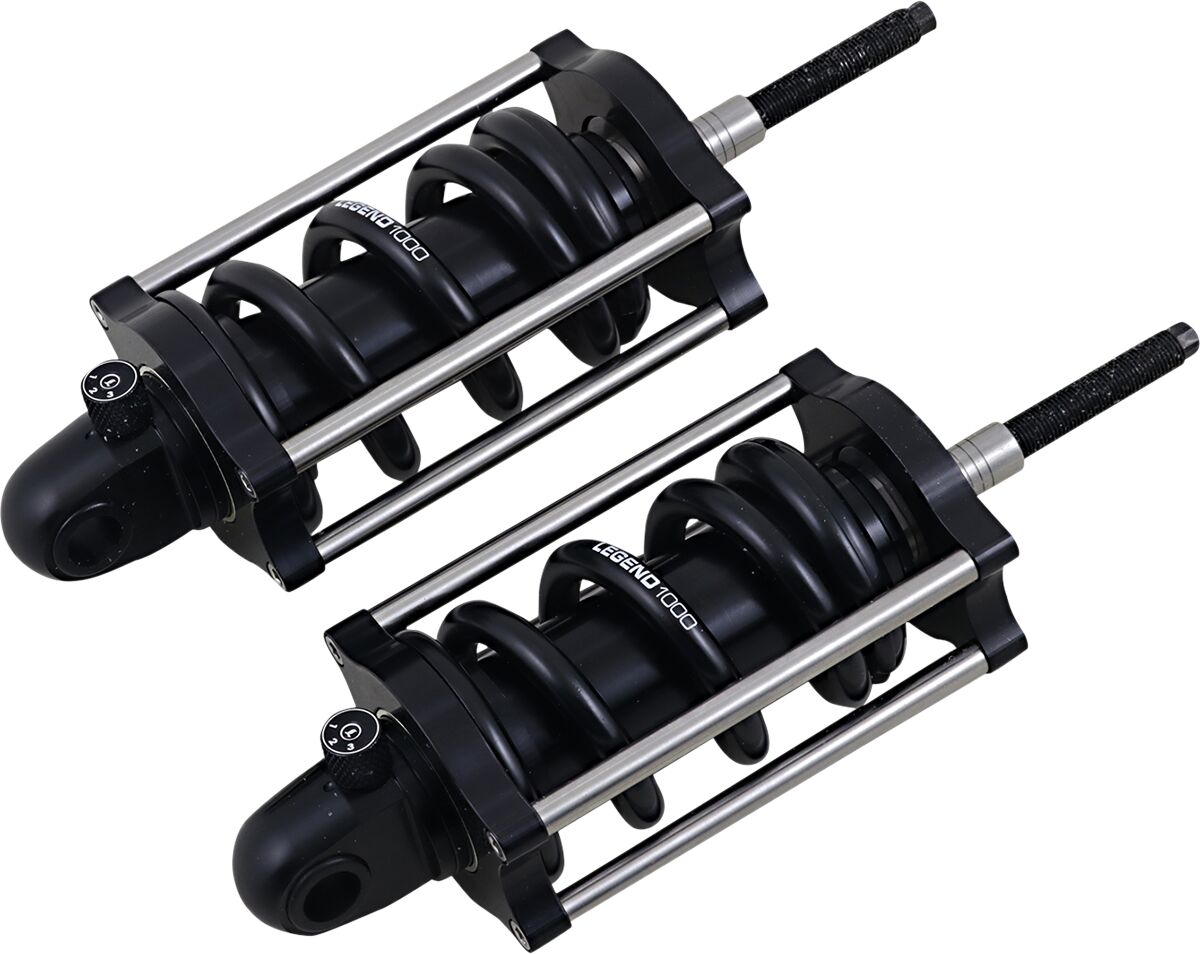

REVO-A Adjustable Softail Coil Suspension

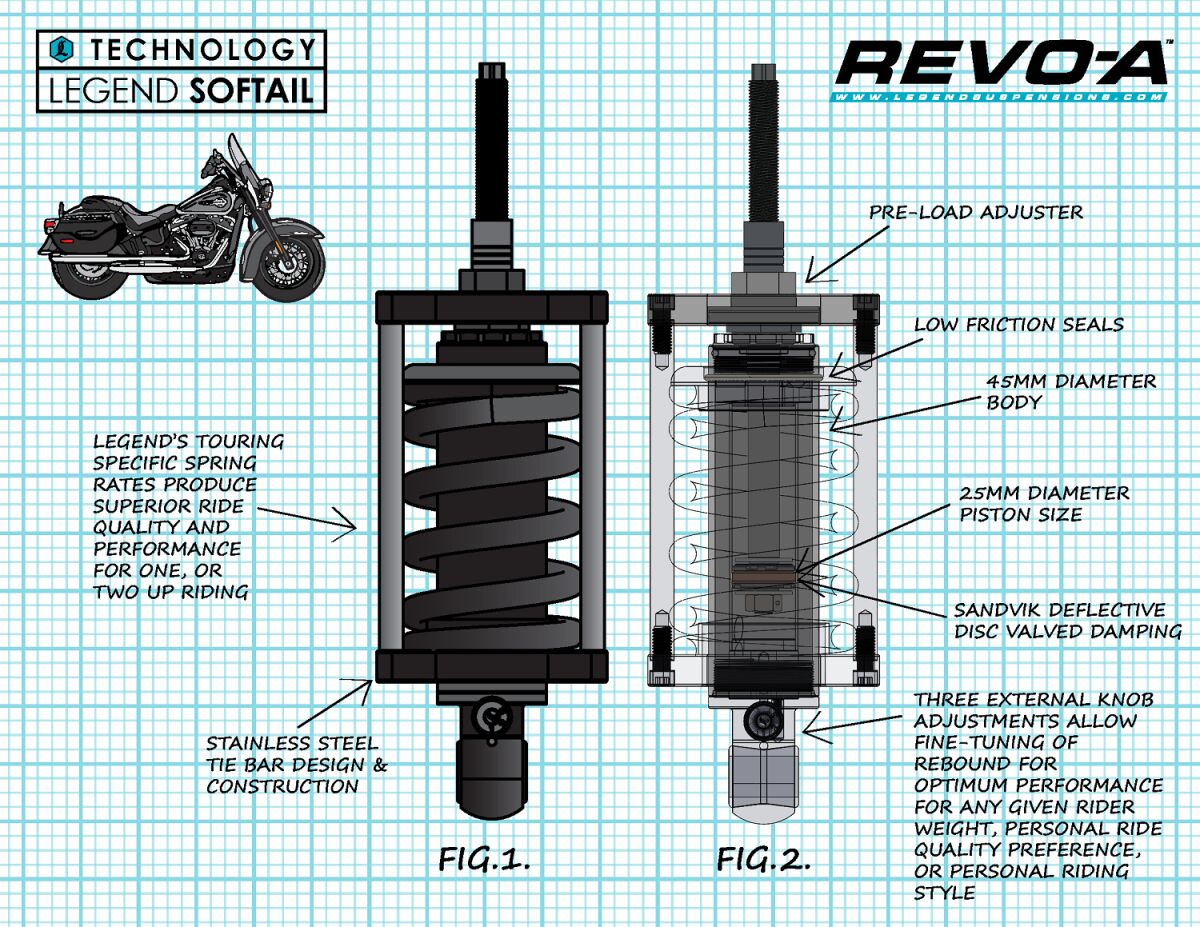

- Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort .
- 45 mm billet aluminum twin tube design with 25mm piston reacts quickly for improved fluid flow.
- Deflective disc valving self-adjusts to frequency and ensures controlled performance.
- Low friction sealing system and sliding bearings for improved performance and feel.

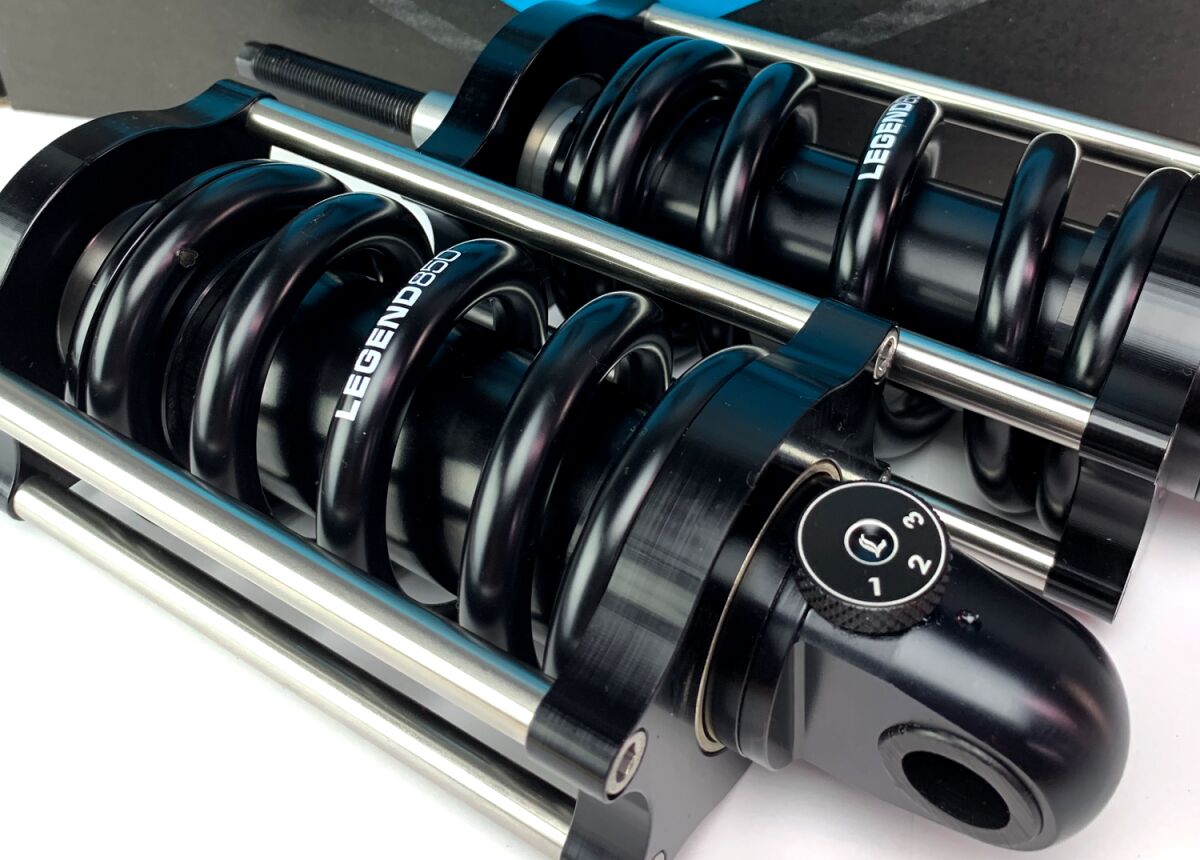

- Three external knob adjustments allow fine-tuning of rebound.
- Stainless Steel tie bar design and construction.
- Available only in standard length for optimum ride quality and performance.
- Available only in Black Type III hard coat anodize.
- Easy Installation and Adjustment.
- Sold in Pairs.
- Made by hand in Sturgis, SD, USA

Heavy Duty application is recommended for 250 lb+ rider and passenger total weight. Also consider heavy-duty if the majority of your riding is two up with a passenger and/or gear.Compressed Length: 11.00."

Spezification

Article-No.:

13101974

Manufacturer/Distribution:
Legend Air Suspension / Drag Specialties

Packaging Unit:

PR
