Part Description

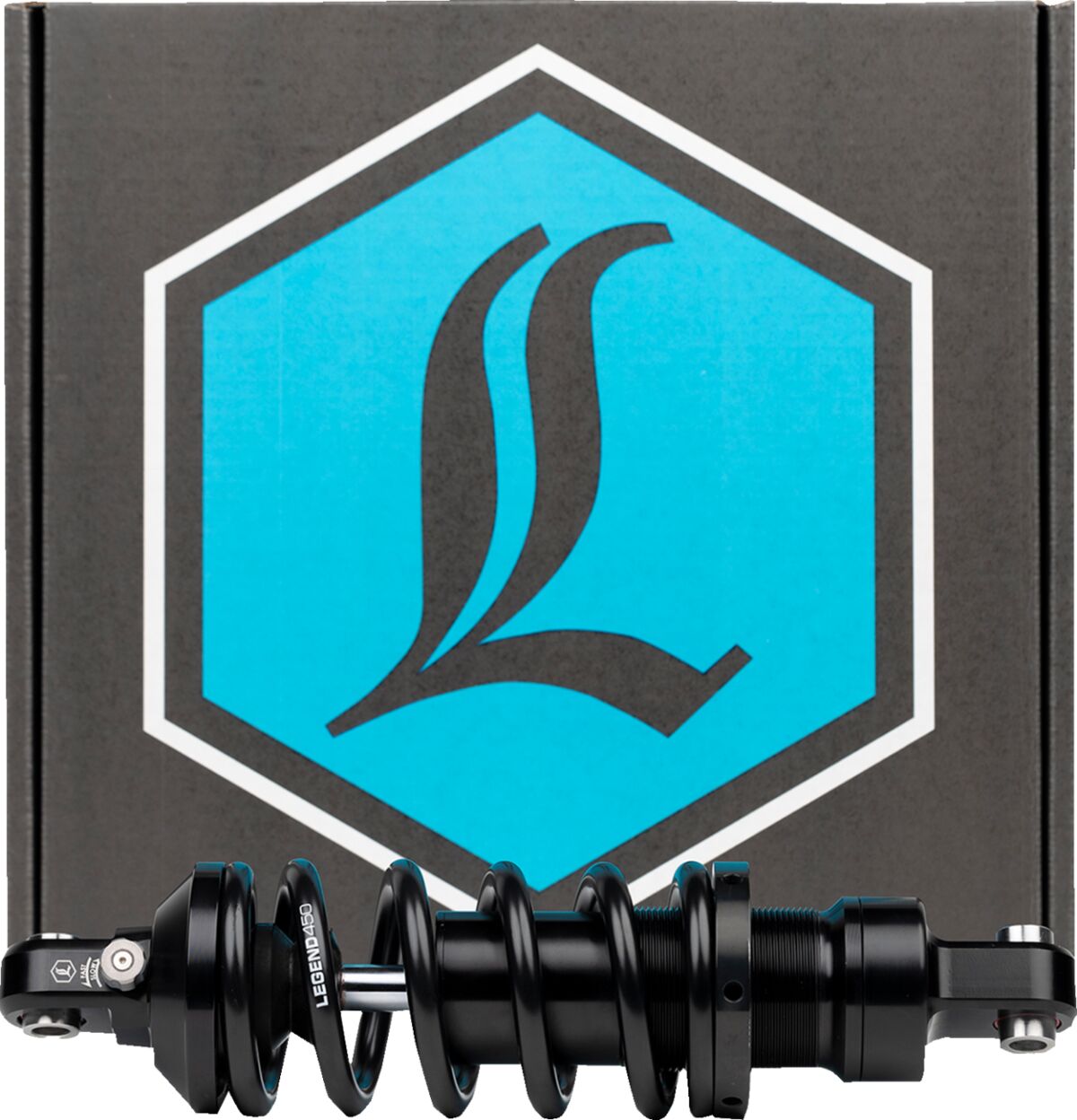

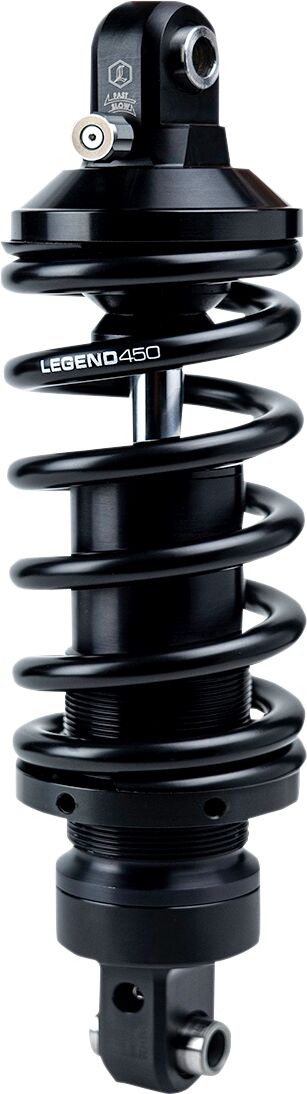

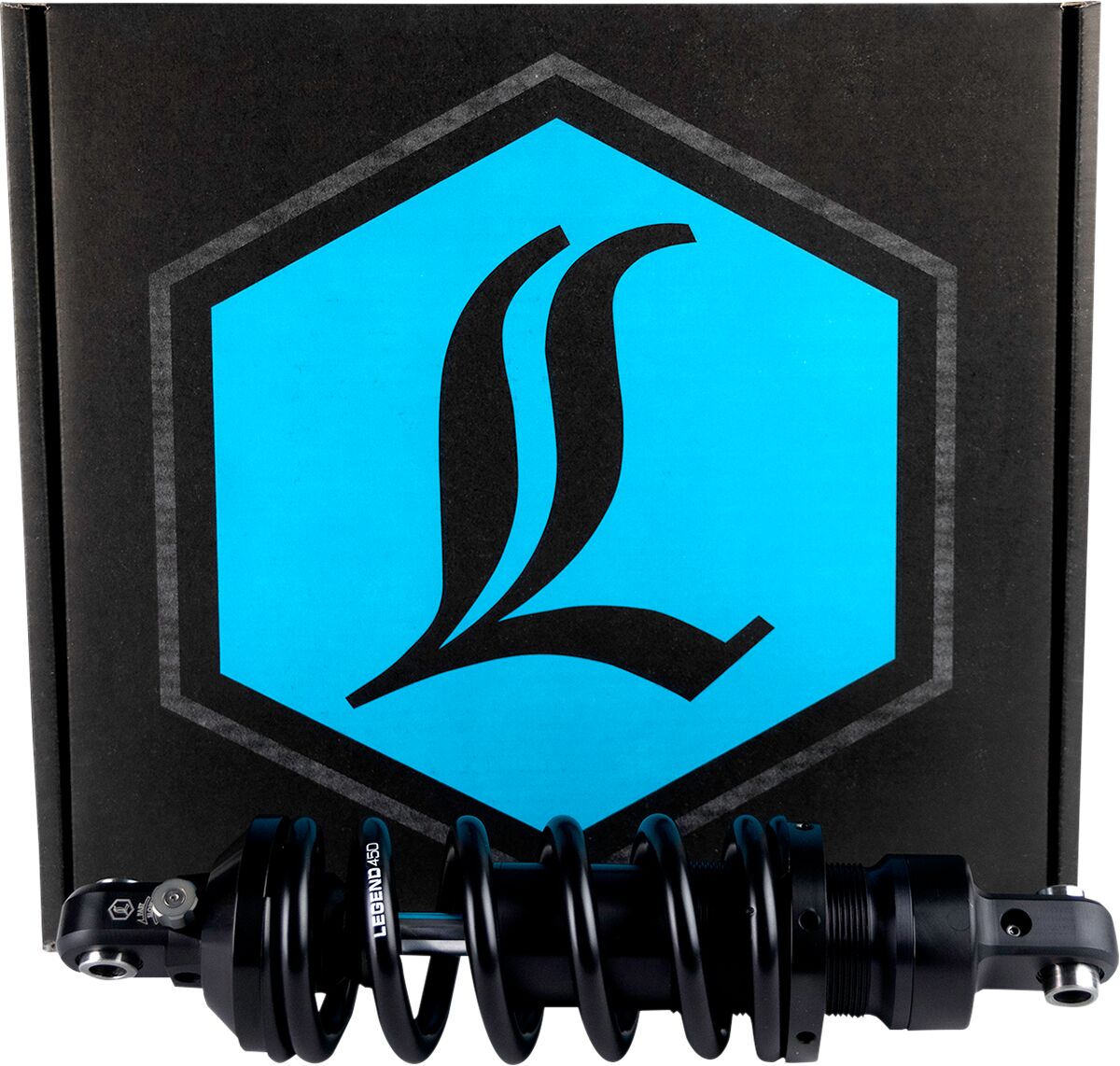

REVO-A Adjustable M-Eight Softail Coil Suspension- Revo-A coil designed specifically for M-8 Softail models.
- Available in 12.5, 13", and 13.5", standard or heavy-duty applications.
- Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads.
- Legend's touring specific spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort .
- Features adjustable rebound damping that is specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob.
- Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style.
- Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind.
- Hard anodized, 46 mm billet aluminum mono tube design utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control.
- Hard chromed shaft is 14% larger for increased strength.
- Internal floating nitrogen piston ensures consistent damping performance.
- Deflective disc valving self-adjusts to frequency and ensures controlled performance.
- Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel.
- Available in Black Type III hard coat anodize.
- Easy installation that utilizes the OEM mounting hardware.
- Included preload wrench makes adjusting easy.
- Sold as Mono Shock (1 shock only).
- Designed for optimum performance with the Legend Axeo front suspension.
- Made by hand in Sturgis, SD, USA13" is standard length for FLHC/FXFB/FXLRS/FXLRST. Heavy Duty application is recommended for 350 lb + rider and passenger total weight. Also consider heavy-duty if the majority of your riding is two up with a passenger and/or gear."
