Part Description

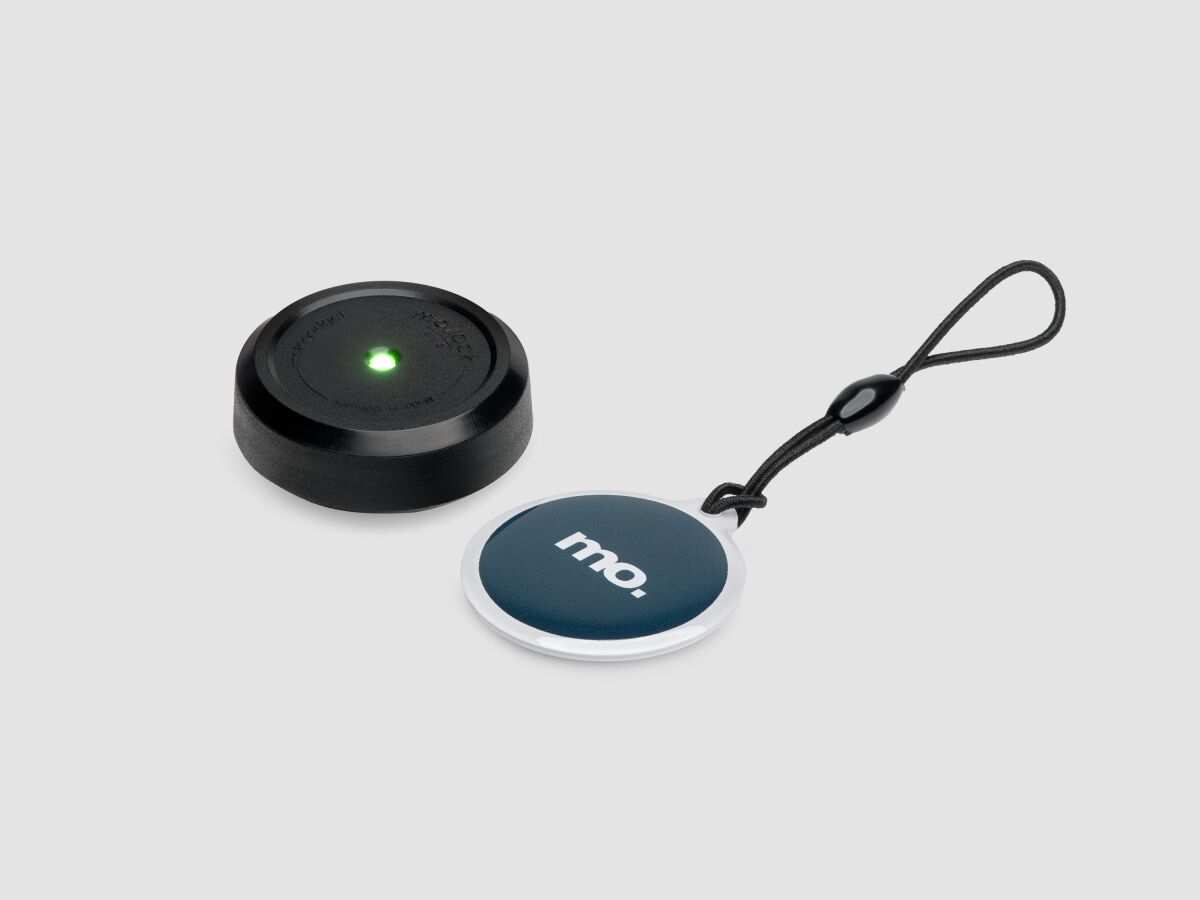

mo.lock NFC Lock- Digital ignition lock replacing mechanical ignition lock or their electrical switching function..
- Near-Field-Communication technology is tamper-proof compared to radio remote controls..
- Lock is small allowing hidden mounting behind non-metallic parts..
- Overloading or scorching of contacts is impossible due to indirect switching via 40A load relay..
- Lock automatically reduces the quiescent current in 3 stages when not used..
- 100% water and vibration resistant thanks to lock being overmolded with non-flammable thermoset..
- Contactless switching distance is approximately 4cm safely ensuring switching ON and OFF excluding unintentional actuation..
- Integrated RGB LED indates status of lock when in use and when teaching new keys..
- Keys require no battery and are 30mm in diameter and weigh 2gr..
- Additional keys can be purchased and trained for the lock each key has a unique code..
- Technical data.
- Mounting 1 x M3 threaded bushing on rear side, bracket with 2 mounting holes.
- Operating temperature -20°... +80°C.
- Height 12 mm without plug contacts and housing.
- Weightl approx. 35 g.
- Operating voltage8 V - 18 V.
- Diameter of the transmitter/receiver on the vehicle 32 mm.
- replaces Part 0521-0889
