Part Description

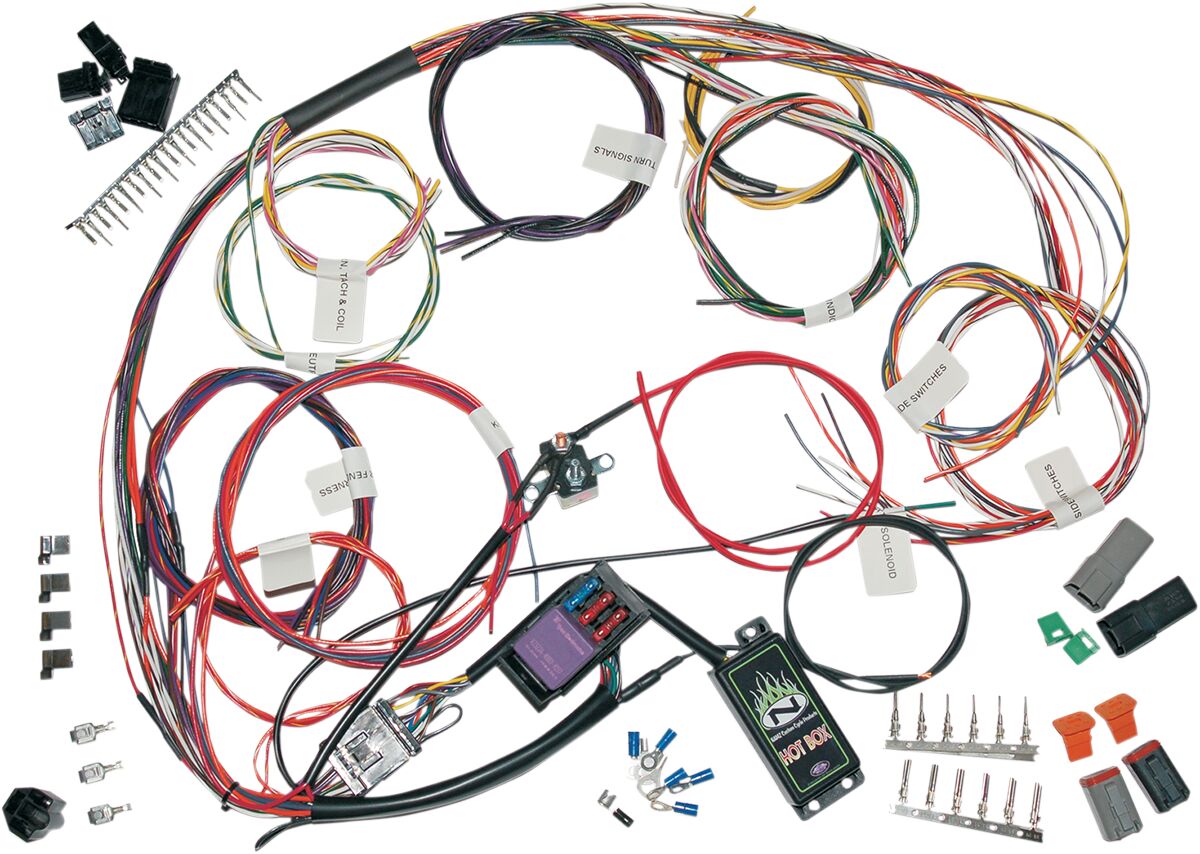

Custom Full Motorcycle Wiring Harness- The perfect start for any project bike or OEM model re-wire.
- Complete bike harness w/ starter relay, 3-circuits, self-canceling and run, brake and turn signal module.
- Works with any stand alone, Evo or Twin Cam ignition system.
- Designed to operate with a two-position key switch.
- Key start switches can be used with a simple wiring modification (ignition system and key switch are not included with this harness).
- OEM color-matching harness with 11-second self-canceling turn signal module.
- Fuse block holds a full size, commonly available and replaceable starter relay and three (3) ATO fuses.
- A 30-Amp circuit breaker is installed and is ready for any regulator/charging system.
- Harness provides running light and turn signal functions to the front turn signals, run, brake and turn signal functions for the rear turn signals.
- Oil, neutral, high beam and turn signal indicator wiring.
- Color-matching handlebar switch wiring, as found on most '96-'13 models (except Dresser models).
- Headlight wiring with headlight socket and terminals.
- Front turn signal connectors and terminals.
- Rear fender harness with connectors and terminals.
- Key switch wiring with ring terminals.
- Coil wire with ring terminals, tachometer, horn, oil sending unit, brake switch and neutral switch wiring with terminals.
- Sections of 3/16, 1/4", 3/8" and 1/2" i.d. heat shrink included.
- Heavy-gauge power and ground wires with terminals for battery connection.
- Made in the USAFor US models only."
