Part Description

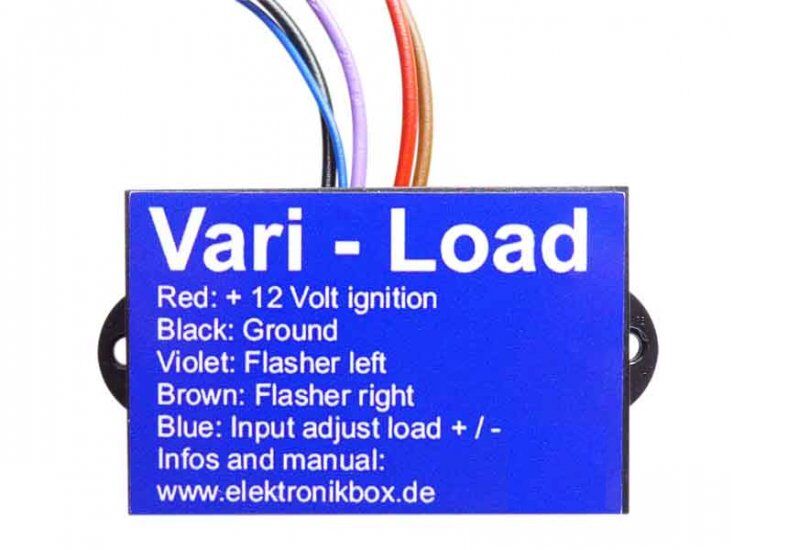

VARI LOAD DIGITAL LOADEQUALIZER- The Vari Load is a programmable Load-Equalizer that affords you to use LED Flasher in any bike..
- The Vari Load's power is adjusted using the thin blue cable..
- Simply hold the blue cable against +12 volts and the load will slowly increase in 50 steps up to approximately 10 watts..
- If you hold the blue cable against ground, the load will decrease until it reaches 0 watts..
- As soon as you disconnect the cable from ground or +12 volts, the set load value is saved and recalled the next time you turn it on..
- A complete cycle through all available power values ??takes approximately 20 seconds..
- The built-in LED flashes up to 50 times when the power value changes, indirectly indicating the set value through its number of flashes. .
- As soon as one of the two limits (0 watts or approximately 10 watts) is reached, it lights up continuously..
- Dimensions:56 mm x 37 mm x 17 mm.
- Body material:ABS.
- Input voltage range:7 - 18 Volt.
- Connections:Inputs 0,14 mm², Outputs 0,75 qmm.
- Output power range: Between 2 x 1 Watt and 2 x 15 Watt.
- Maximum ambience temperature:80 degree Celsius
