Part Description

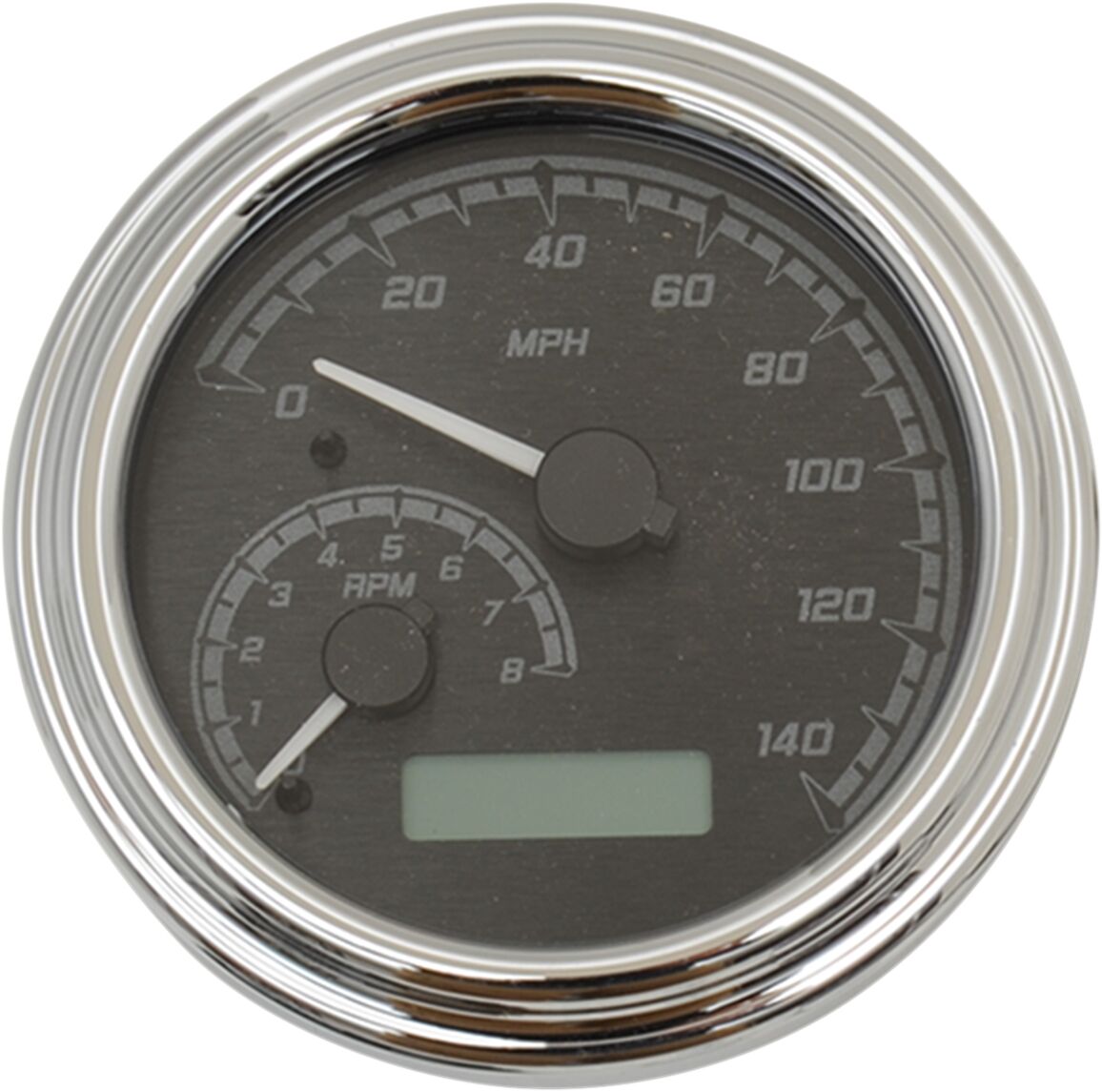

MVX Series Analog Gauge System- Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge.
- Systems for '99-'03 models feature seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white).
- Systems for '11-'22 models feature 31 user-selectable colors or pointer, backlight and LCD message center.
- 8,000 rpm tachometer has adjustable shift point and can display in digital numeric readout.
- Resettable miles to service with a warning (user settable countdown) and hour meter.
- Clock function (12-hour format).
- Voltage readout with low-voltage alert.
- Cylinder head temperature sensor (if bike is equipped with factory sender unit).
- Oil pressure sending unit (sold separately, part #s 2212-0513 or DS-250019.
- Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions.
- Security system indicator.
- Automatic turn signal cancelling compatible.
- Wait to start/check engine light function.
- Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4 mile time and speed.

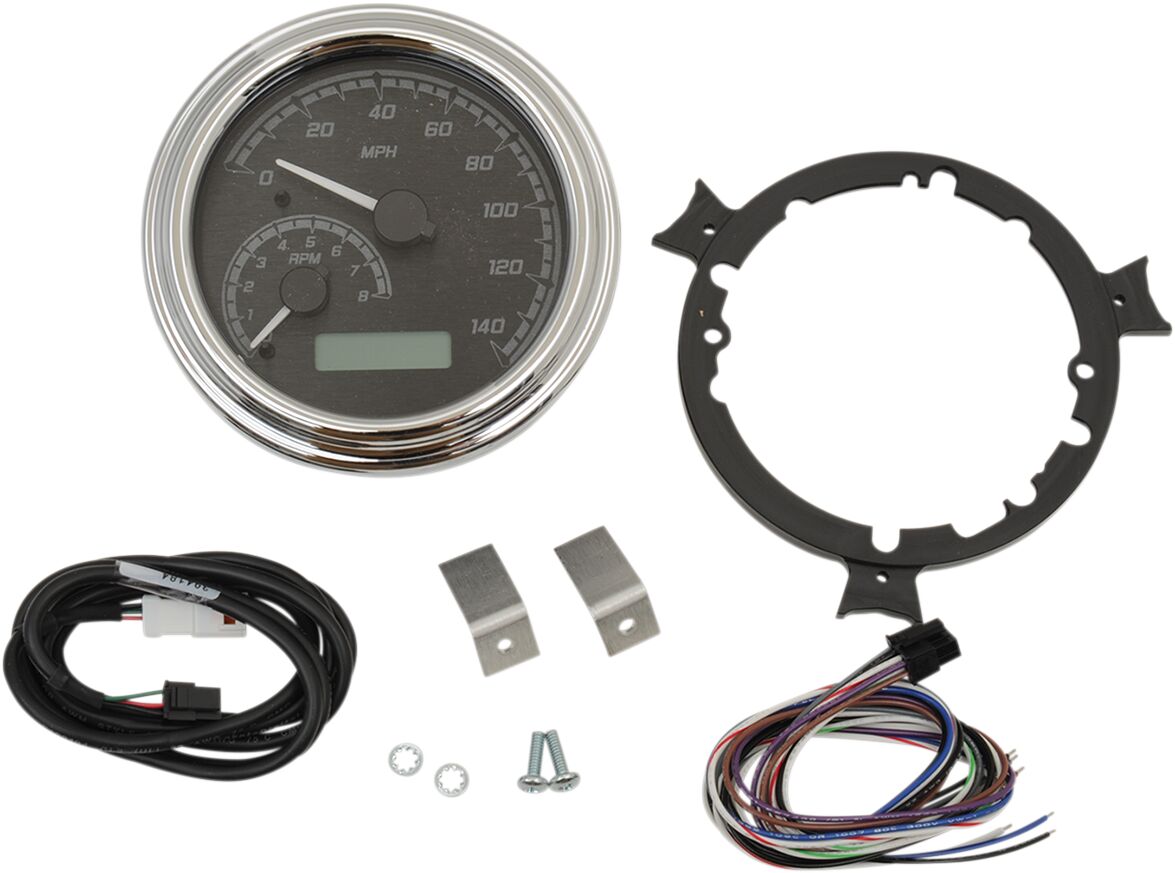

- Wiring installation is cut/splice; not a direct plug-in gauge.
- Case diameter measures 4-1/4 and bezel diameter of 4-5/8""
